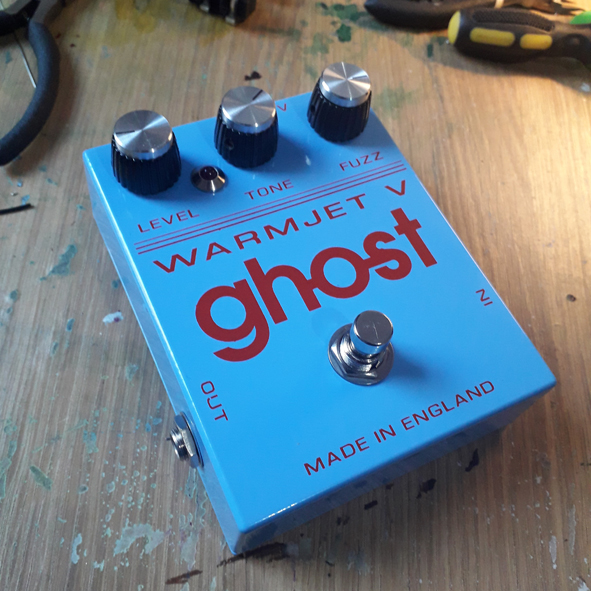

Ghost Effects Warmjet V

Based on the very rare WEM Project V fuzz pedal as used by Brian Eno on 'Here come the Warm Jets' and other recordings.

This is a modified version of the Project V, I breadboarded the circuit 'stock' first and decided to make a few changes, mainly getting rid of the drive/edge output toggle switches.

Instead of the switches I added a control to dial in the 'edge' tone, quite similar to the 'Timbre' control on a Buzzaround.

The 2 bias controls set the gain and texture of the circuit, I prefer to mount the texture control externally and the gain control internally.

If needed I can mount both externally or internally, there are photos on my Facebook showing the different ones I have done.

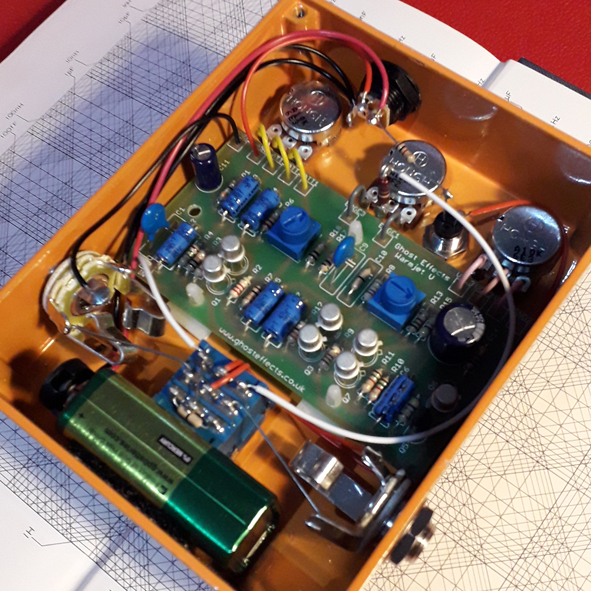

There are 8 transistors in the circuit, I use 7 BC108b, and 1 BC557b.

A 9V DC input is fitted as standard, the circuit is negative ground and needs a negative tip 9V DC adaptor or battery.

Cases are powdercoated by Bournes, with the labelling screenprinted by Missionprint, both local Birmingham based firms.

The Warmjet V PCBs were designed by Stuart Castledine.

Available NOW for 150 plus shipping.

CONTACT EMAIL - info at ghosteffects.co.uk

Ghost Effects Warmjet V Manual



As used by Karl Hyde from Underworld, and Freddie Cowan from The Vaccines.







Ghost Effects Warmjet V PCB.

Available NOW at 9.99 each plus shipping (March 2017 batch), Email for info.

CONTACT EMAIL - info at ghosteffects.co.uk

Warmjet V PCB PDF Guide
